The PRC-4090 high-frequency transceiver for tactical operations

Barrett Communications recently unveiled the PRC-4090 HF SDR transceiver at the DSEI, AUSA and MilCIS industry shows. The PRC-4090 is an innovative tactical device that combines advanced software-defined radio technology with a user-friendly touch interface.

With extended operating times of up to 21 hours, the PRC-4090 transceiver is specially designed with practicality in mind. It weighs only 2.95 kg and uses light alloys to reduce the load on the battlefield.

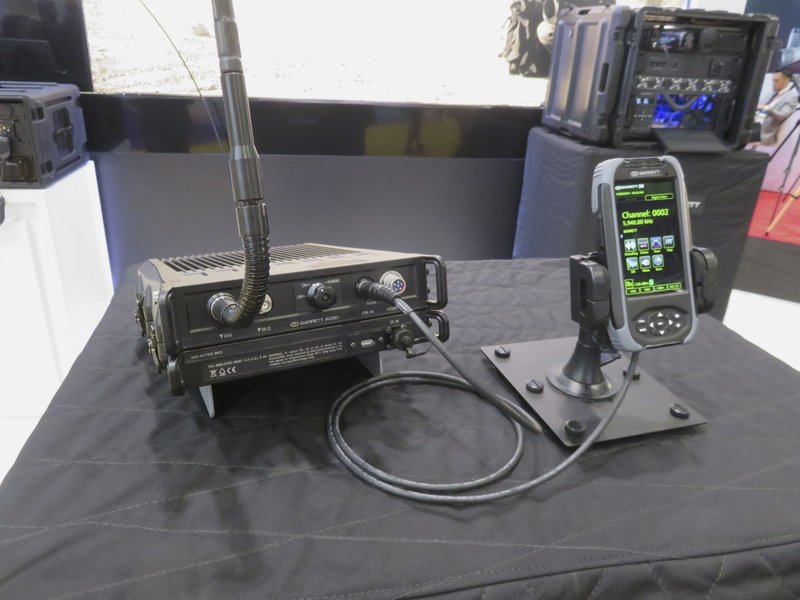

The PRC-4090 control handset allows the operator to control the transceiver by carrying the display module (attached via a molle), eliminating the need to remove the luggage module. The control handset has a 24-bit high-resolution color touch screen, providing improved viewing ability even in extreme weather conditions. From the display, users have access to the most modern and intuitive HF radio interface currently available on the market, containing four different color modes suitable for different ambient light conditions. Each handset is equipped with an advanced GPS system that improves emergency call and positioning features for all deployed identically equipped HF assets.

Internet Protocol (IP) network connectivity is available as standard with the PRC-4090 system docking stations. The RJ-45 Ethernet access point allows the HF network to connect directly to computers, making it easy to integrate with Barrett’s tracking and data options.

Free White Paper


The new generation HF SDR


From Barrett Communications

Enter your details to get the free paper:

Thank you.
Please check your email to download the white paper.


When used in conjunction with other Barrett HF products, the PRC-4090 provides secure and reliable data transfer, telephone and email connection. It is compatible with all major mobile and desktop platforms, including iOS, Android and Windows, and can be controlled remotely using the Barrett 4000 HF series remote control application.

The PRC-4090 provides many additional features to improve battlefield communications. These include secure digital voice technology to increase the reliability of low-channel communications, advanced frequency hopping, and second-generation (2G) and third-generation (3G) automatic connection establishment (ALE).

Barrett’s PRC-4090 transceiver provides Secall call protocols, including SMS text, GPS positioning, telephone connection and status call as standard, along with a digital signal processor (DSP) that provides clear and understandable voice communications over analog channels. by removing background noise and interference.

Barrett Communications is now accepting temporary orders for the PRC-4090, with deliveries starting in the second quarter of 2020. The company will be showcasing the FIDAE PRC-4090 in Chile and the DSA in Malaysia in April and the Eurosatory 2020 Defense and Security Exhibition at the Parc des Expositions de Villepinte, France, in June.
